उत्पाद विवरण
उत्पत्ति के प्लेस: हेनान, चीन
ब्रांड नाम: BAISHUN MACHINERY
प्रमाणन: CE/ISO9001
Model Number: CK5117
दस्तावेज़: उत्पाद पुस्तिका पीडीएफ
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: negotiable
पैकेजिंग विवरण: निर्यात मानक लकड़ी के मामले पैकेज या ग्राहकों के साथ बातचीत
प्रसव के समय: 45 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन
Supply Ability: 20 Set/Sets per Month

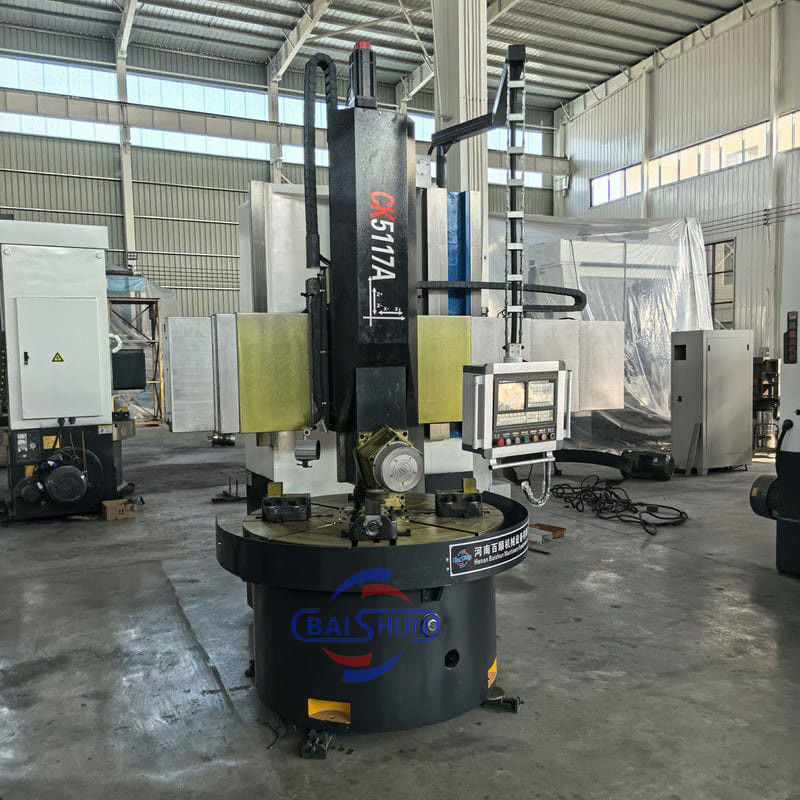

उत्पाद का नाम: |
उच्च परिशुद्धता ऊर्ध्वाधर लात |
मशीन का प्रकार: |
CK5117 |
Max. अधिकतम. turning diameter(mm) मोड़ व्यास (मिमी): |
1700 |
Max. अधिकतम. height of workpiece(mm) वर्कपीस की ऊंचाई (मिमी): |
1200 |
वर्कटेबल आकार (मिमी): |
1400 |
काम के टुकड़े का अधिकतम वजन: |
5 टन |
No. of Spindles: |
Single |
वोल्टेज: |
380v |
Key words: |
Vertical Lathe |
कार्य: |
धातु मोड़ना |
उत्पाद का नाम: |
उच्च परिशुद्धता ऊर्ध्वाधर लात |
मशीन का प्रकार: |
CK5117 |
Max. अधिकतम. turning diameter(mm) मोड़ व्यास (मिमी): |
1700 |
Max. अधिकतम. height of workpiece(mm) वर्कपीस की ऊंचाई (मिमी): |
1200 |
वर्कटेबल आकार (मिमी): |
1400 |
काम के टुकड़े का अधिकतम वजन: |
5 टन |
No. of Spindles: |
Single |
वोल्टेज: |
380v |
Key words: |
Vertical Lathe |
कार्य: |
धातु मोड़ना |
China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.
Main Features:
1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm to 2600mm of single column vertical lathe, For CK5116 type, it is designed with the table diameter of 1400mm, and the standard maximum machining height is 1200mm.
2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.
3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.
4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.
Machine parameter
|
CK518 |
CK5112Q |
CK5112A |
CK5116Q |
CK5120A |
CK5126A |
|
|
Max. turning diameter of vertical tool rest (mm) |
800 |
1200 |
1200 |
1600 |
2000 |
2600 |
|
Working table diameter (mm) |
700 |
1000 |
1000 |
1400 |
1800 |
2200 |
|
Max. height of work-piece (mm) |
800 |
1000 |
1000 |
1200 |
1250 |
1400 |
|
Max. weight of work-piece (kg) |
1500 |
1500 |
3200 |
3200 |
8000 |
8000 |
|
Range of worktable rotation speed (rpm) |
30-260 |
20-180 |
6.3-200 |
15-160 |
3.2-100 |
2.2-70 |
|
Feeding series |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
|
Range of tool rest feed (mm/min) |
0.25-90 |
0.25-90 |
0.8-86 |
0.25-90 |
0.8-86 |
0.8-86 |
|
Cross beam travel (mm) |
500 |
1000 |
650 |
1200 |
890 |
1090 |
|
Horizontal travel of tool rest (mm) |
500 |
700 |
700 |
900 |
1115 |
1400 |
|
Vertical travel of tool rest (mm) |
450 |
500 |
650 |
750 |
800 |
800 |
|
Size of section of cutter bar (mm) |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
|
Main motor power (kw) |
11 |
15 |
22 |
15 |
30 |
30 |
Detail Machine Photo:
Shipping and Delivering:
For more details and specifications, please contact:
